Guardian Basic

Product No.: TYE1516

Guardian Basic (Pack of 6)

Product No.: TYE1516.1

Outline

This model is designed for basic CPR training, assessment and debriefing with operation data can be displayed in real time. An ideal choice for trainees not only learning how to perform good quality CPR but also remembering how to do it so they are ready if the time comes to perform for real.

Skills Gained

· Familiar with the anatomy

· Easily understanding the purpose and principles of CPR, and helping enhance the educational learning because of the real-time feedback

Features

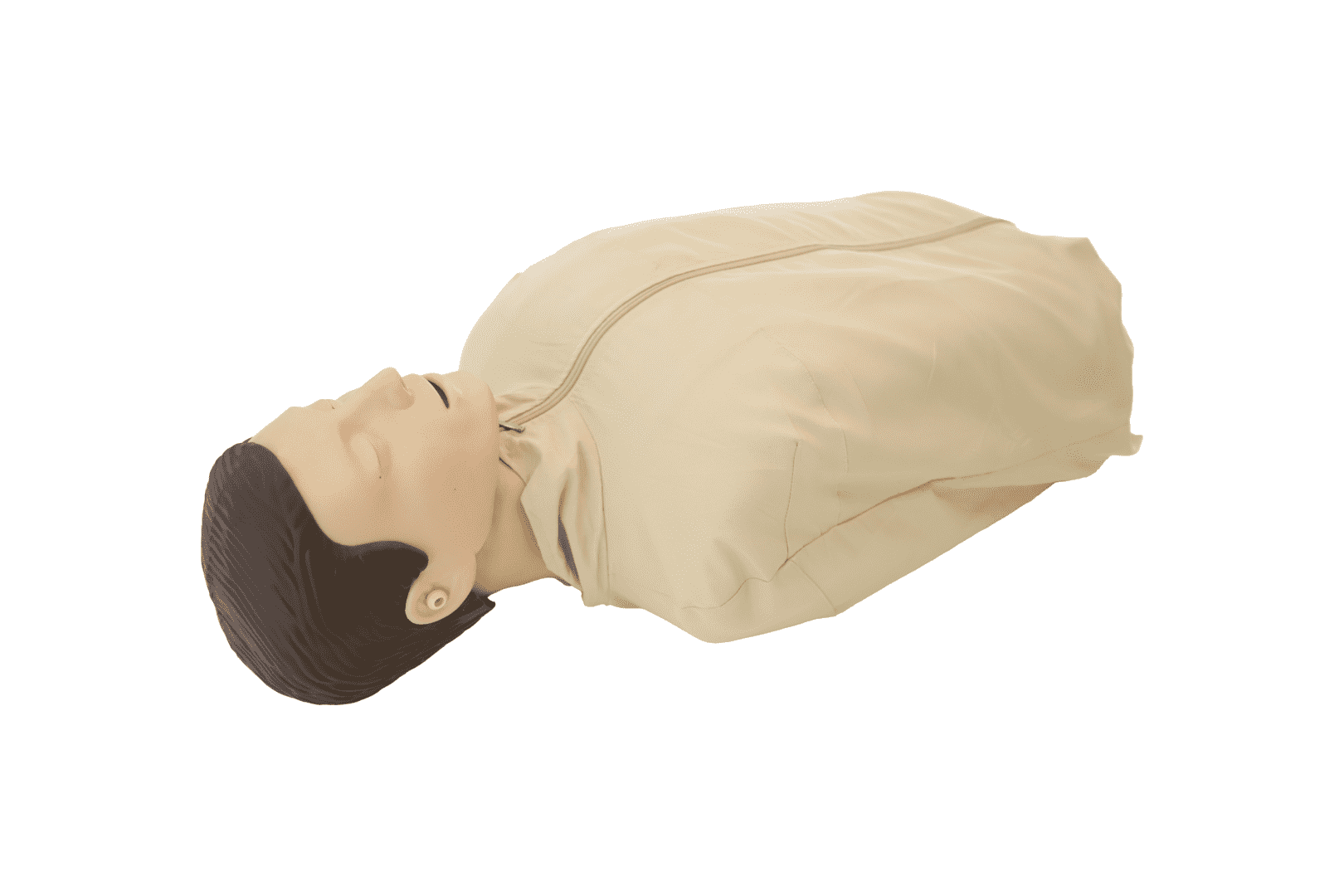

· Manikin:

1)       Half-body, easy to use and carry

2)       Life-like Asian male with correct anatomical structures including teeth, tongue, uvula, glottis, epiglottis, larynx, vocal cord, etc.

3)       Realistic and accurate anatomical landmarks to locate compression position

4)       Realistic skin feel and touch

5)       Artificial bilateral carotid pulsation

6)       Wireless design

7)       The manikin supports over 100000 times of chest compression

8)       Built-in rechargeable battery with a continuous runtime over 4 hours with a full charge

9)       Guardian Basic (Pack of 6) can control over six models for training and examination with operation data from each model displayed

· Software:

1)       The software can be installed in any terminal such as mobile phone, tablet, PC, etc., and is compatible with Windows, OSX, Android, IOS and other mainstream operating systems. No need for pre-installing to realize wireless communication

2)       CPR

A)      Compliant with 2015 AHA and ERC guidelines

B)      Supporting single CPR training process and realizing real-time guidance and supervision of the process

C)      Supporting compression, ventilation, compression and ventilation within limited training time. Various training difficulty for different levels of trainees is allowed

D)      Customized training duration for self-test training

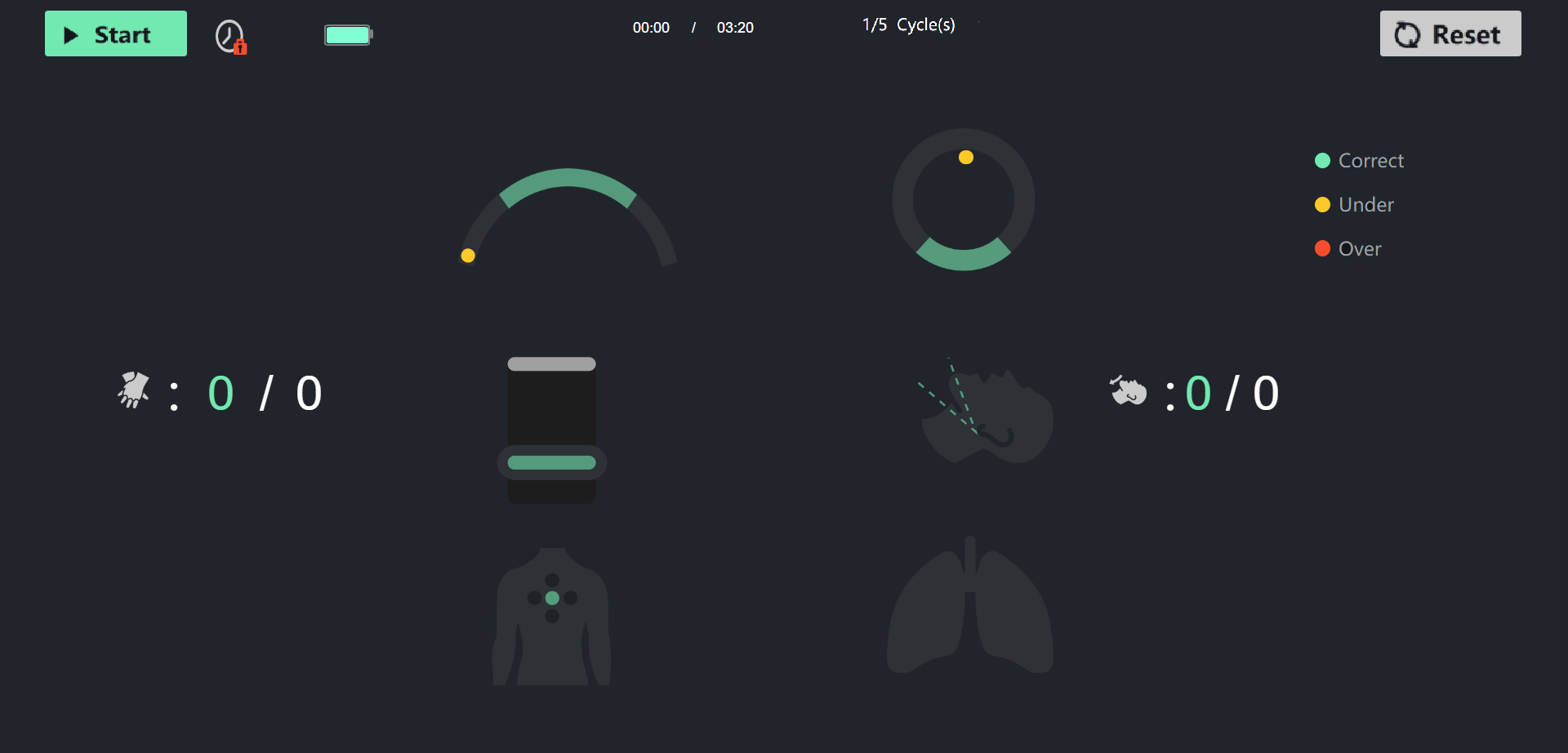

E)       Operation data during the training such as compression depth, rate, position, tidal volume, ventilation duration, airway opening etc. will be displayed as a chart in real-time. Users can view the details, convenient to correct improper operation

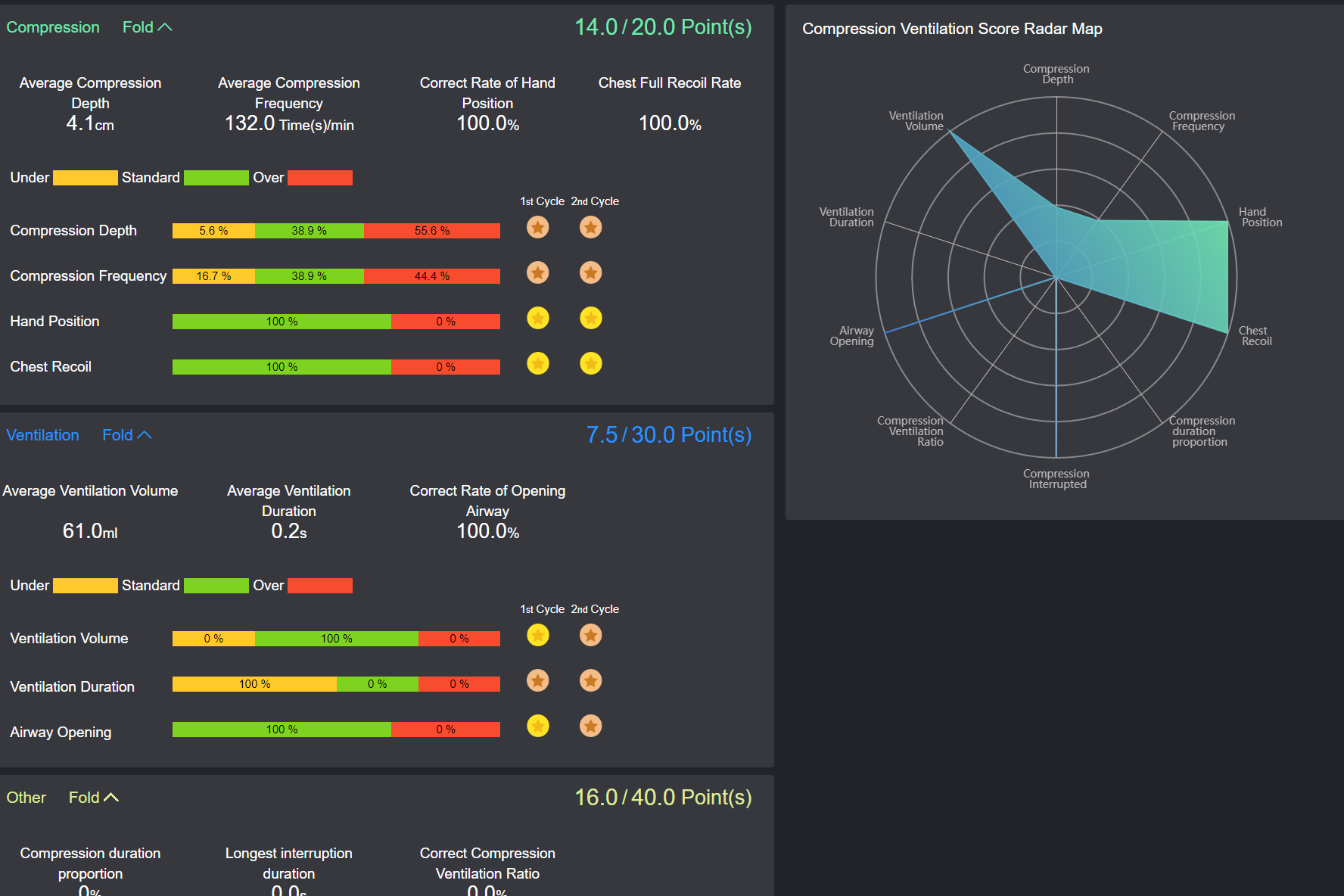

F)       All training and assessment data can be automatically saved. Users can view details of a certain training, including the total training scores, total training duration, number of cycle; average compression depth, rate, accuracy of compression position, ratio of chest recoil; average ventilation volume, duration, accuracy of airway opening; proportion of compression duration in the entire CPR, maximum interrupted duration, etc.

G)      Data playback for reviewing, evaluation and debriefing

H)      It’s possible to save and export results

I)        It’s possible to automatically calibrate time to ensure that the time of the score list matches the time of the device

3)       Guardian Basic (Pack of 6) support integrating the objective training data collected by the sensor and the instructor’s subjective data to generate an exportable training transcript

4)       Guardian Basic (Pack of 6) offers optional router mode and network mode
